产锯条长度 3962mm锯条宽度 6-30mm
锯条线速度 1500m/min
最大切高 335mm
喉口宽度 480mm
工作台尺寸 633×485mm
工作台转角 0-45°
锯轮直径 500mm
电机输出功率 3kW
机器净毛重 220/235kgs
包装尺寸 990×760×1900mm
Sharing the same essential design and feature of BS400, the BS500 improved in capacities and motor power. Perfect for the smaller shop that has serious ripping requirement.

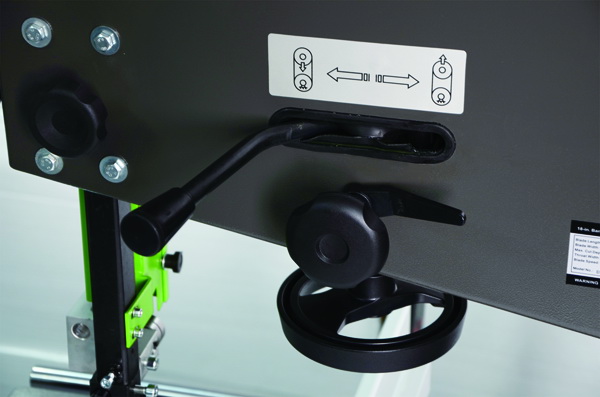

Standard features such as Tool-less blade guides on the top/bottom, Quick blade tension with indicator, Easy drift table and gear driving tilting table and so much more! It puts industrial style features and very capacities within reach of the discerning woodworker who needs rock solid perfomance and reliability.
产品特点：
＊ 精铸飞轮经动平衡处理，提供足够惯量，保证切割的均匀性。
＊ 锯条快速涨紧机构，松弛锯条后可快速复位，无需再次繁琐的调整，并延长锯条使用寿命。
＊ 轴承式锯卡，方便调整及更换，有效减小对锯条的损伤，并消除切割冲击时锯条发生的摆动。
＊ 激光切割齿轮工作台转角机构，提高角度切割的稳定性及操作的便利性。
